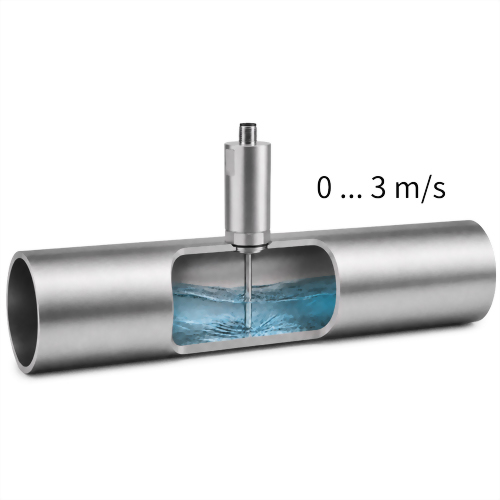

eYc FTM06T-W Thermal Mass Type Air Velocity and Flow Transmitter

Output signal: Analog / RS-485 / Impulse output
Input signal type: Thermal mass flow sensor
Range: Water 0 ... 1.5 m/s;0 ... 3 m/s
Accuracy: ±3% 0 ... 1.5 m/s;±5% 1.5 ... 3 m/s
IP rating:IP65 (IP67 optional)
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation:3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

eYc FTM06T-A Thermal Mass Type Air Velocity and Flow Transmitter

Output signal: Analog / RS-485 / Impulse output
Input signal type: Thermal mass flow sensor
Measuring range: Air : 0 ... 20 m/s ; 0 ... 40 m/s
Accuracy: ±3% 0 ... 20 m/s;±5% 0 ... 40 m/s
IP rating:IP65 (IP67 optional)
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation:3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

eYc FUM05B Wall Mounted Ultrasonic Flowmeter

Feature :
Measurement accuracy 1 %
Converter protection class IP 67 , transducer protection class IP 68
Wide measurement range , pipe size from DN15mm to DN6000mm
Connect the temperature transducer can finish the heat / energy measurement
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation:3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

eYc FSE Paddle Wheel Flow Transmitter

Output:Square wave frequency NPN output
Input:Liquid
Range:0.3 ... 6 m/s
Accuracy:±0.5% F.S.(K factor calibrated)@V≧ 0.5 m/s

eYc FFM05 Liquid Turbine Flow Transmitter

Flow range:0.04 ... 800(m3/h)
Accuracy:0.5% of rate (Optional:0.2%)
Output:Pulse, 4 … 20mA (Option:Local display+4 ... 20mA)
Material:SS304(Housing/Flanges) / 2Cr13(Rotor) / Tungsten Carbide(Bearings and shafts)
●Additional option:(ILAC/TAF)Test report-Standard calibration laboratory (TAF accreditation:3032, complying with ISO/IEC 17025)
TAF has mutual recognition arrangement with ILAC MRA

eYc FUMD Clamp-on Ultrasonic Flow Transmitter

Output:4 ... 20 mA, Maximum load:600 Ω
Accuracy:2.0% (±0.5 m/s ... 5.0 m/s)
Power supply:DC 24 V
Liquid:Water, Chemical, Oil
IP rating:IP54

eYc FVM09 V-cone Flow Meter

Features : Measuring of gases, vapors, and liquids, low-pressure loss, high-temperature resistance, good stability.
Diameter : DN15 ... DN2000​
Accuracy : ±0.5% of measured value
Turndown ratio : Typical 10 : 1 ; maximum 20 : 1
Temperature range : ​< 600°C

eYc HFUM Handheld Ultrasonic Flow Meter

Accuracy:±1%
Velocity range:0 ... ±10 m/s
Pipe size:DN15 ... DN6000 mm
Liquid temperature:-30 ... 160°C
Liquid type:Water, sea water, waste water, alcohol, beer, various kinds of oil etc which can conduct ultrasound single uniform liquid

eYc FOM09 Porous Orifice Plate Balanced Flowmeter

Features : Porous Structure, Adjusting Eddy Eurrent, Low Pressure Loss, High Temperature, Good Stability
Diameter : DN3 ... DN3000​
Accuracy : ​±1.0% ; ±1.5%​
Turndown ratio : ​10:1​
Medium temperature : ​< 600°C​
