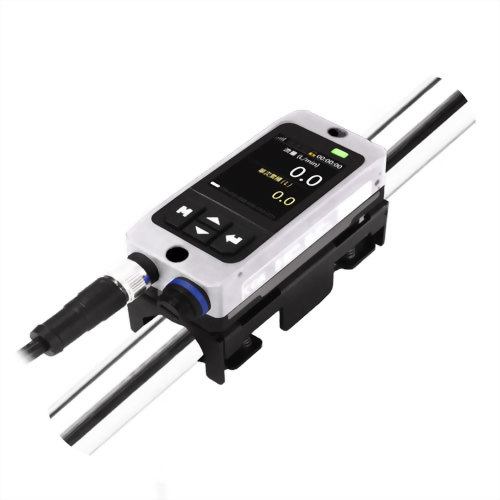

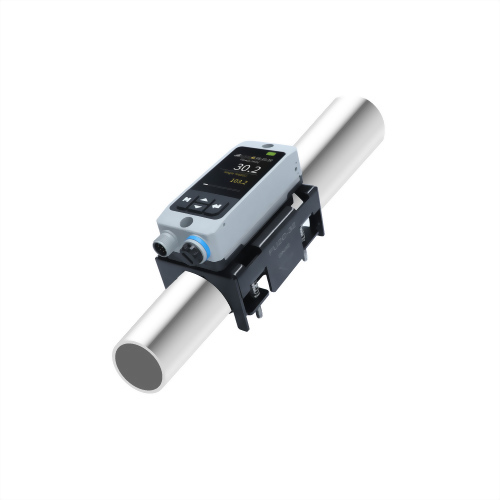

FUM03 Clamp-on Ultrasonic Flow Meter

Model : FUM03
Features : Suitable for water, circulating cooling water, and some chemical liquids; DN8–DN40 small pipe diameters.
Detection Principle : Transmission Time Difference
Maximum Flow Rate : 19.6 ... 376.8 L/min
Output : Switch / Analog / RS-485
Accuracy : ±1% F.S.
IP rating : IP65/IP67
  • Features
    ● Suitable for all kinds of liquids
    ● Suitable for all kinds of pipes, measuring range ( DN08 ~ DN40 )
    ● No need to cut the pipe for installation and used without downtime
    ● Quick installation, set the pipe diameter to complete the installation and measurement
    ● No contact with liquid, not afraid of dirt and corrosion, zero pressure loss
  • Applications
    Process Precision Control and Leak Detection / Water Resources and Wastewater Treatment / HVAC Cooling / Tower Systems and Energy Management / Industrial Process Monitoring and Control / Beverage Canning / Machines / Machine Tool Coolant Management / Drainage Management and Detection Systems
  • Download
  • Specification

    Applicable Pipe Size

    Metric Units
    DN8 (1/4") ... DN40 (1 1/2")

    Pipe Material

    Stainless steel, Carbon steel, Copper pipe, Aluminum pipe, PVDF, CPVC, PVC, PPR, PPH, PFA, HDPE

    Fluid Temperature

    0°C ... 85°C (Pipe surface must not be frozen)

    Maximum Flow Rate

    19.6 ... 376.8 L/min

    Zero Cut-Off Flow Rate

    0.3 ... 1.0 L/min

    Detection Principle

    Transmission Time Difference

    Display

    TFT2.0"

    Display Refresh Cycle

    4times/sec

    Resolution

    Instantaneous Flow
    0.01, 0.1, 1 L/min
    Totalized Flow
    0.01, 0.1, 1 L (up to 8 digits)

    Response Time

    0.5s, 1.0s, 2.5s, 5.0s, 10.0s

    Measurement Accuracy

    At 10% to 100% of F.S.
    ±2% of F.S. Note 1, 2, 3
    At 0% to 10% of F.S.
    ±1% of F.S. Note 1, 2, 3

    Repeatability F.S.

    ±0.8% Note 2, 4

    Flow Unit

    L/min, m³/h

    Pulse Output Unit

    0.1 ... 999.99 L

    Data Retention Time

    Approx. 1 year

    Power I/O Connector

    M12 8pin connector

    Output

    Switch Output
    Instant / Window / Pulse / Accumulated / Error / No Signal / NPN / PNP switchable open collector output : ≤ 26.4 VDC, ≤ 80 mA/ch, residual voltage ≤ 2.5 V
    Analog Output
    1 ... 5 V / 0 ... 10 V (switchable) Load resistance : 50kΩ
    4 ... 20 mA / 0 ... 20 mA (switchable) Load resistance : ≤300 Ω Note 5
    Communication Interface
    RS-485
    Relay Output
    Relay output : ≤ 30VDC, max 1A, freq. <2Hz

    Power Supply

    Supply Voltage
    DC24V±10% Note 6
    Current Consumption
    ≤200 mA Note 7

    Protective Circuit

    Power reverse protection, surge protection, output short-circuit protection Note 8

    Environmental Resistance

    Enclosure Protection Rating
    IP65/IP67
    Operating Temperature
    - 20°C ... +60°C (no freezing)
    Operating Humidity
    35% ... 85%RH (non-condensing)
    Vibration Resistance
    10Hz to 500 Hz power spectral
    density : 0.816 G²/Hz (X, Y, Z directions)

    Menu Language

    Traditional Chinese, English

    Calendar Battery

    CR1220

    Applicable Medium

    Water, solution, chemical reagents (impurities ≤ 4%)

    Applicable Viscosity

    <300CST (mm²/s)

    Weight

    DN8 / DN10 : 316 g , DN15 / DN20 : 309 g, DN25 / DN32 : 392 g , DN40 : 503 g

    Note :
    1. The ultrasonic-measured liquid must not contain large amounts of bubbles. Measurement may become unstable depending on pipe material and conditions.
    2. Errors may occur due to the type of piping, condition, fluid type, and fluid temperature used by the customer.
    3. Zero-point adjustment was performed in a controlled environment at 25° C, considering linearity error.
    4. The definition assumes a stable velocity distribution. It does not account for pulsations or variations caused by equipment. The stated F.S. (Full Scale) should be interpreted using the rated flow range.
    5. The output impedance of the analog voltage type is approximately 1 kΩ. If the load impedance is low, the output value may differ significantly. Please verify and account for load impedance error before use.
    6. DC24V connection current varies depending on whether a load is connected. Consumption current may also vary. Please take special care.
    7. Load current must be below 200 mA. (Excluding expansion module)
    8. The built-in protection circuit only covers specific error conditions and load short circuits. It does not guarantee protection against all wiring errors.

Note : Design and specifications are subject to change without notice.
Note : If the product has RS-485 function, to avoid damaging product, please make sure the product and the device which connect with RS-485 are on common ground.
