FUM06 Ultrasonic Flowmeter
Model :
FUM06
Features : Non-intrusive and high-precision measurement, suitable for various fluids and pipe sizes.
Sensor type : Ultrasonic time difference
Turndown ratio : 100 : 1
Measuring range : 0.1 ... 10 m/s
Output : 4 ... 20 mA / 0 ... 10 V / RS-485
Accuracy : ±1% F.S.
IP rating : IP65
Sensor type : Ultrasonic time difference
Turndown ratio : 100 : 1
Measuring range : 0.1 ... 10 m/s
Output : 4 ... 20 mA / 0 ... 10 V / RS-485
Accuracy : ±1% F.S.
IP rating : IP65
-
Features● With ultrasonic technology, it can accurately measure the flow rate of 0.1 m/s.
● Wide measurement range (DN50 ~ DN300), easy installation

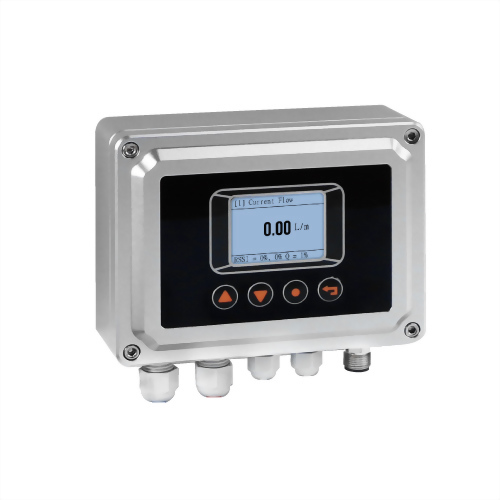

● 2″ LCD color screen displays flow rate and flow, easy to set with buttons

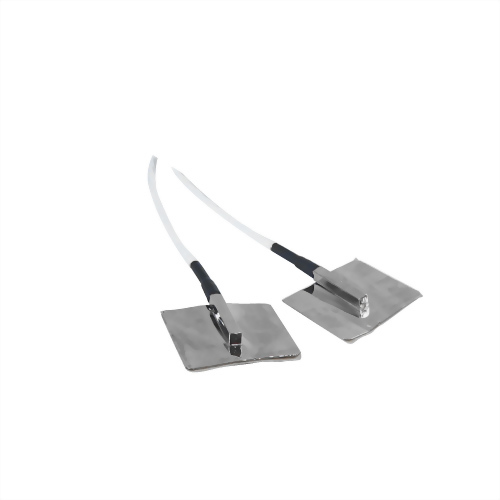

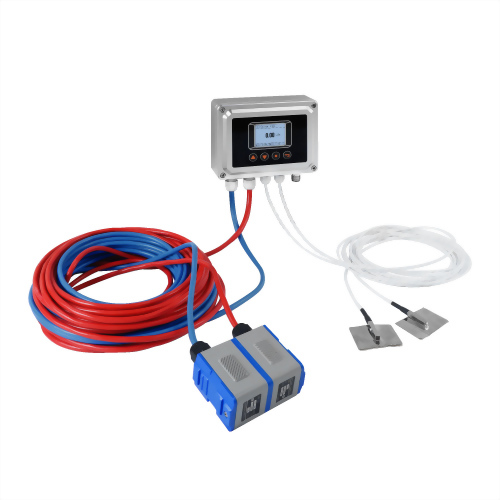

● Installed on the measuring pipe, the two are connected with a special cable and can be used with a temperature meter for measurement -
ApplicationsProcess / Energy-saving monitoring in industries such as petrochemicals / Water conservancy / Metallurgy / Chemistry / Machinery energy saving
-
Download
-
Specification
Input
Sensor type
Ultrasonic time difference
Turndown ratio
100 : 1
Measuring range
0.1 ... 10 m/s
Transducers

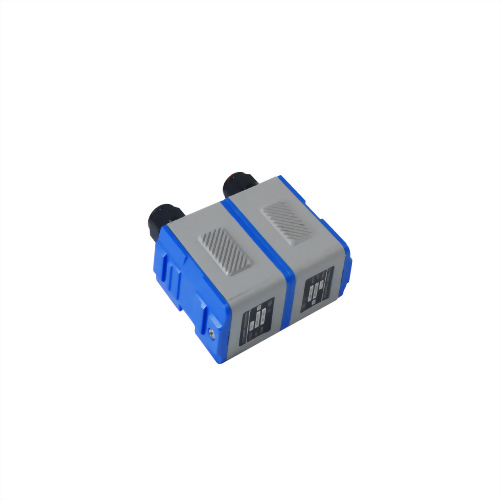

TM-1, cable 10 m
Output
Output signal
4 ... 20 mA / 0 ... 10 V / RS-485
Temp. measurement
Can connect Pt1000 thermometer (RS-485 reading)
Load resistance
Current output : ≦500 Ω
Voltage output : ≧10 KΩ
Accuracy
Accuracy
±1% F.S.
Display
Display readout
-99.99 ... +99.55 (Flow rate)
0 ... 9999999(Flow)
Decimal point
Button
Sampling time
1 cycle/sec
Unit
m/s、ft/s、L/min、CMM、CFM、CFH
Response time adjustment range
1 sec
Environmental
Operating Temp. & Humid.
0 ... 50°C / 20 ... 85%RH(Non-condensing)
Storage Temp.
-25 ... 60°C
Transducers Temp.
-30 ... 90°C
Medium
Water, Sea water, Alcohol, Acetone, Methanol, Ethanol, Acetaldehyde, Peanut oil, Glycerin, Benzene, Toluene, Ethylbenzene, Petroleum, Pine oil, Ketone, Ethylene glycol
Communication
Communication methods & protocol
RS-485 Modbus RTU
RS-485 baud rate
9600、19200、38400、57600、115200 bps
Electrical
Power supply
DC 24 V ±10%
Current consumption
24 V : 110 mA
Electrical connection
M12 5P connector
Pipe installation condition
Pipe material
Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Fiberglass
Straight pipe
Transmitter installation should be satisfied : upstream 10 D, downstream 5D, 30D from the pump
Installation
Clamp type
Pipe diameter
DN50 ... DN300
Certification
Certification
CE
Protection
IP rating
IP65(Housing)
Electrical protection
■ Reverse polarity ■ Over-voltage
Material
Housing
Aluminum alloy
Probe
PC
Note : Design and specifications are subject to change without notice.
Note : If the product has RS-485 function, to avoid damaging product, please make sure the product and the device which connect with RS-485 are on common ground.
