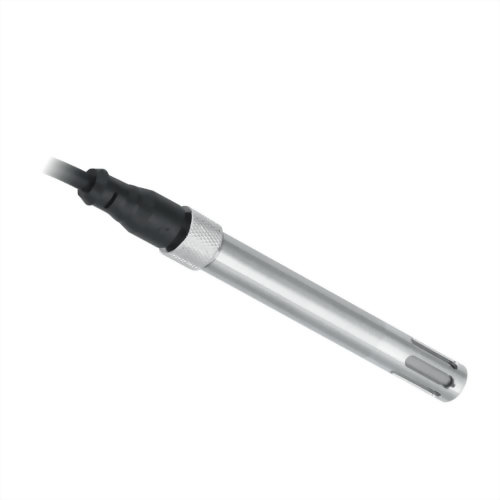

THS17-MD Temperature & Humidity Transmitter
Model :
THS17-MD
Features : Probe type. Easy to install. Cost effective.
Sensor type : MEMS
Measuring range : 0°C ... +50°C / 0 ... +100%RH (Non-condensing)
Output : RS-485
Accuracy : ±0.1°C / ±1.0%RH
IP rating : IP24 ( Sensor ) / IP 65 ( Body )
MOQ : 50 PCS/YEAR
Sensor type : MEMS
Measuring range : 0°C ... +50°C / 0 ... +100%RH (Non-condensing)
Output : RS-485
Accuracy : ±0.1°C / ±1.0%RH
IP rating : IP24 ( Sensor ) / IP 65 ( Body )
MOQ : 50 PCS/YEAR
-
Features
● Real-Time data of temperature & humidity
● SUS304 metal housing
● Economic price, high accuracy, nicer long-term stability
● MEMS semiconductor sensor
● Anti-condensation protection
● Digital RS-485 output
● Compact size and elegant outlook and easy to install -
ApplicationsMonitoring for HVAC process / Air conditioning / Environmental ventilation control / Building / Factory /Clean room / Laboratory / Storeroom / Crisper / Agriculture / Food industry / Machinery / Equipment
-
Download
-
Specification
Input
Temperature
MEMS
Humidity
MEMS
Measuring range
Temperature
0°C ... +50°C
Humidity
0 ... +100%RH (Non-condensing)
*The measurement range is defined at the standard condition(1013 mbar, 25°C). Output
Output
RS-485
Signal connection
3-wire
Warm-up time
< 2 min. stable time 20 mins.
Response time
t63 (15 ... 45°C/33 ... 75%RH)≦ 10 sec
Sampling time
About 3 sec
Accuracy (at +25°C)
Temperature
±0.1°C (Suggest range : 10°C ... 50°C)
Humidity (20 ... 70%RH)
±1.0%RH
Hysteresis error
±1.0%RH
Temp. influence
±0.15%RH/°C (0 ... 50°C )
Electrical
Power supply
DC 24V±10%
Current consumption
DC：Max. 6 mA
Electrical connection
PVC cable 0.32 mm2 x 4C
Environmental
Medium
Air
Operating Temp.
+0°C ... +50°C
Operating Humid.
0 ... 100%RH (Non-condensing)
Storage temperature
-20°C ... +60°C
Installation
Installation
Flange ( Metal )
Protection
IP rating
IP24 ( Sensor )；IP 65 ( Body )
Electrical protection
■ Polarity protection
■ Over-voltage
■ Short-circuitCertification
Certification
CE
Material
Housing
SUS304 ( Metal )
Cable
PVC
Optional accessory
Metal flange
Weight
Metal ( with cable )
135 g
Note : Design and specifications are subject to change without notice.
Note : If the product has RS-485 function, to avoid damaging product, please make sure the product and the device which connect with RS-485 are on common ground.
