New Release | FDM06-L Bi-directional Air Flow Transmitter

eyc-tech is going to release a series of transmitters upgrades in 2025, advancing precision to the next level. These enhancements focus on ultra-low air velocity measurement, user-friendly displays, and improved operation.

Features

• Bi-directional Airflow Measurement
  Ideal for duct applications requiring bi-directional airflow monitoring, this transmitter reacts instantly to flow direction changes. It eliminates the need for dual transmitters, saving space and simplifying reverse flow measurement without reinstallation.



• Ultra-Low Air Velocity Monitoring
  Equipped with dual temperature sensing technology for highly precise low-velocity measurement, expanding its range of applications.

• Versatile Output Options
  Supports analog output, relay, and RS-485 for seamless system integration.

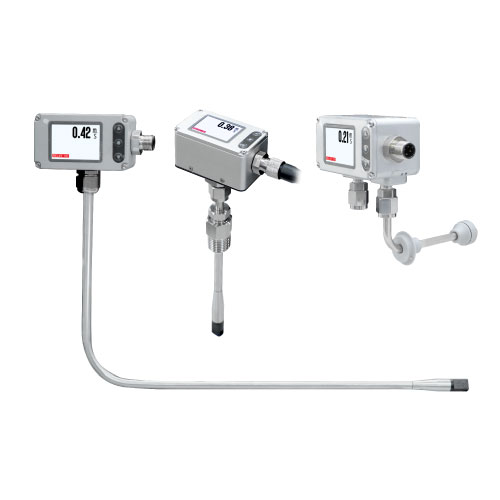

FDM06-L Bi-directional Air Flow Transmitter

Specification Features : Designed for laminar/overflow monitoring in cleanrooms and pharmaceutical facilities. Sensor type : Hot-wire sensor Turndown ratio : 100 : 1 Measuring range : ±(0.00 ... 1 m/s), ±(0.00 ... 2 m/s), ±(0.00 ... 10 m/s) Output : 4 ... 20 mA / 0 ... 10 V / Relay / RS-485 Accuracy : 0.05 ... 1.00 m/s：±(1% of mv+0.05 m/s), 0.05 ... 2.00 m/s：±(1% of mv+0.1 m/s), 0.1 ... 10.00m/s：±(1% of mv+0.2 m/s) IP rating : IP65

Application

• High precision and low air velocity measurement
• Laminar flow / overflow measurement in cleanrooms and pharmaceutical industry
