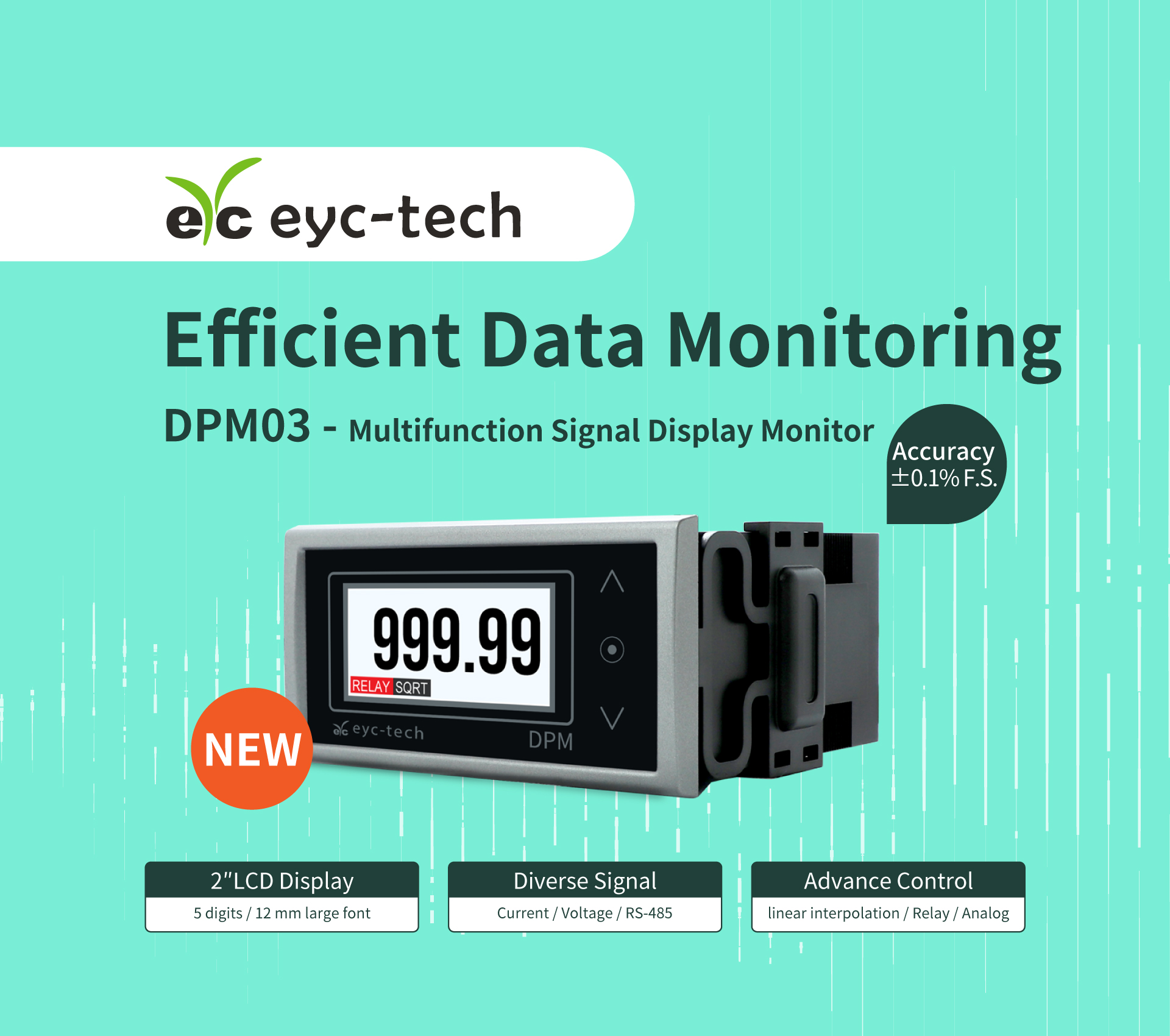

eyc-tech newly introduced DPM03
Multifunction Signal Display Monitor. This is a simple-to-use, easily
configurable, multifunctional signal display Monitor. It features a 2" LCD
screen with 12mm large fonts, providing clear display of monitoring data. It can
be paired with various sensors for monitoring purposes, equipped with relay
control and signal retransmission functions. With RS-485 communication
capability, it seamlessly integrates into systems to achieve more efficient
monitoring.
 |

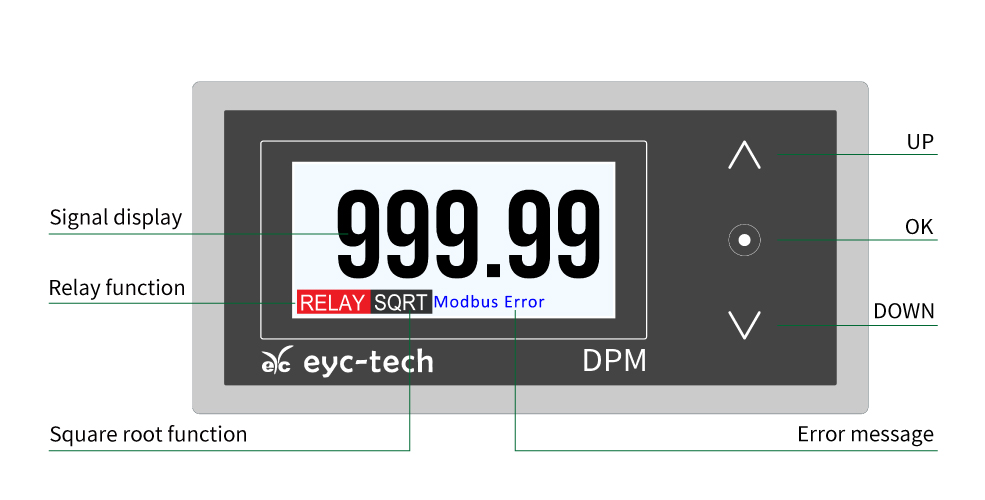

Features
● 2" LCD screen for clear data display |
RS-485 Communication
|
Specification |
|
|
Display readout |
5 digits |
|
Input signal |
0 ... 20 mA / 4 ... 20 mA / 0 ... 10 V |
|
Output signal |
0 ... 20 mA / 4 ... 20 mA / 0 ... 10 V / Relay / RS-485 |
|
Digital communication |
RS-485 Modbus RTU, master and slave |
|
Universal power supply |
AC 90 ... 250 V / DC 24 V |
|
Display Accuracy |
±0.1% F.S. ±1 digit |
 |
|
 |
||
|
|
|
|
||
|

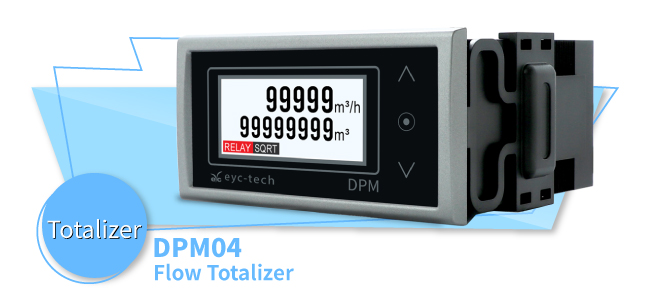

Specification
Display readout: Instantaneous flow : 5 digits / Cumulative flow : 8 digits Input signal: Current / Voltage / Frequency / Pulse Output signal:Current / Voltage / Relay / RS-485 Digital communication: RS-485 Modbus RTU, master and slave Universal power supply: AC 90 ... 250 V / DC 24 V Display Accuracy: ±0.1% F.S. ±1 digit |
|
Specification
Display readout: 4 digits Input signal: Current / Voltage Output signal: Relay / RS-485 Digital communication: RS-485 Modbus RTU, master and slave Universal power supply: AC 90 ... 250 V / DC 24 V Display Accuracy: ±0.1% F.S. ±1 digit |
||
