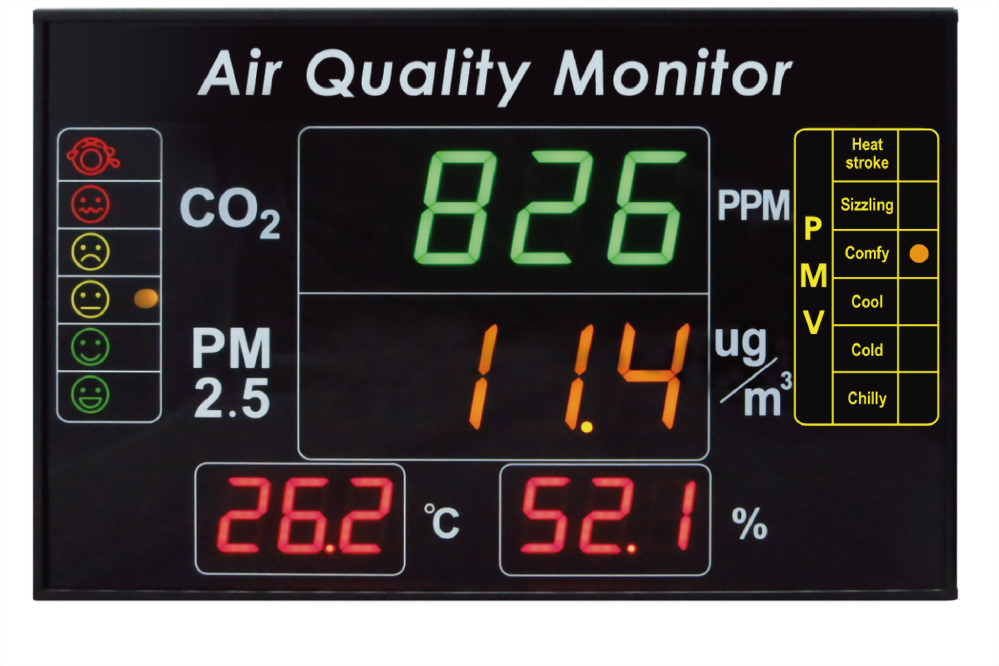

DMB05 4-in-1 Multifunction Indoor Air Quality Large LED Display / Monitor / Indicator

Model : DMB05
【4-in-1】 Monitor PM2.5, CO2, temperature & humidity via RS-485 at the same time.
【High Brightness LED】Easily recognize measuring types and values.
  • Features
    【4-in-1】 Monitor PM2.5, CO2, temperature & humidity via RS-485 at the same time.
    【High Brightness LED】Easily recognize measuring types and values.
    【6-segment CO2 Emoticon】As the local situation and refer to CO2 indication standards to transfer the suitable emoticon
    【6-segment PMV Indication】Refer to PMV indication to display the real-time body sensing.
    【Bargain Set】eYc Multifunction PM2.5 Indoor Air Quality Monitor ( type : eYc TGP03 )
  • Applications
    Monitor environment for Industrial Process / Plant / IDC / Clean room / Laboratory / Agriculture / Storage / Hospital / Department store / Office building / Hotel / Restaurant / Library / Banks and so on.
  • Download
  • Specification

    Display Scale
    Display Type:High Brightness LED
    Temperature:1.5" ( 3.8 cm ) red LED
    Humidity:1.5" ( 3.8 cm ) red LED
    PM2.5:2.3" ( 5.8 cm ) yellow LED
    CO2:2.3" ( 5.8 cm ) green LED

    Display Range with eYc TGP03
    Temperature:0 ... 50 ℃
    Humidity:0 … 100 %RH
    PM2.5:0 … 500 μg / m3
    CO20 … 2000 PPM

    Accuracy
    Temperature:± 0.4℃
    Humidity:± 3 %RH ( at 20 ... 90 %RH )
    PM2.5:± 10 μg / m3 ± 5 % of Reading
    CO2± 40 PPM ± 3 % of Reading

    Input
    Input:RS-485

    Output
    Signal Output:RS-485
    Protocol:Protocol
    Interface:Modbus RTU
    Relay x 2 set:AC 230V / DC 24V, 5A
    Address:1 … FF ( 16 Hex )
    Baud Rate:19200, 9600, 4800, 2400, 115200, 57600, 38400
    Frame:N.81, N.8.2, E.8.1, O.8.1

    Installation
    Installation:Indoor and Wall type

    Dimension
    Dimension:460 ( L ) x 295 ( H ) x 60 ( D ) mm

Note : Design and specifications are subject to change without notice.
Note : If the product has RS-485 function, to avoid damaging product, please make sure the product and the device which connect with RS-485 are on common ground.
